PILOTIX VTX
Signal. Power. Range.
A video transmitter converts the camera signal into an RF transmission your goggles receive in real time.

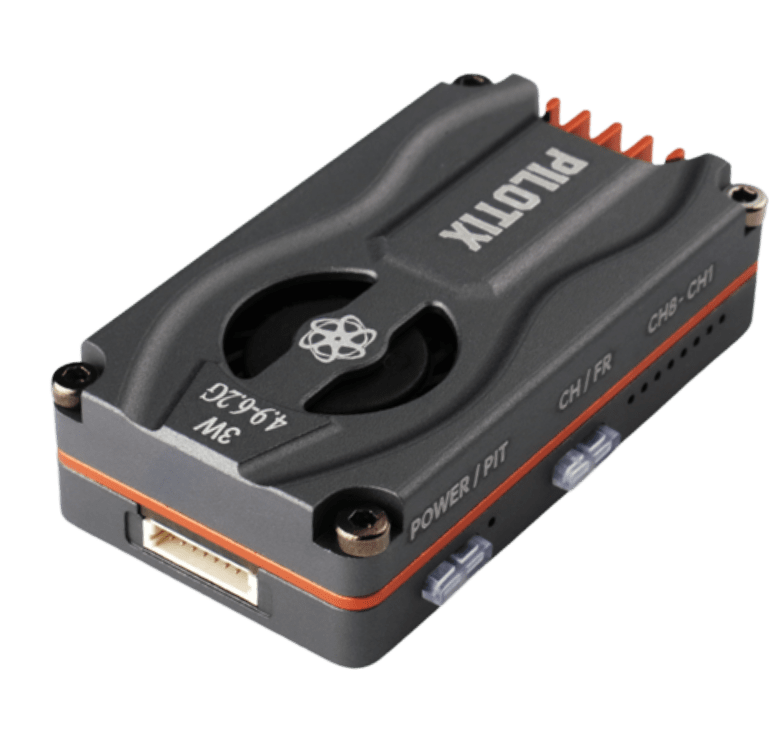

VTX Pilotix R3000 4.9-6.2GHz 3W
Flagship wide-band VTX with five selectable power levels up to 3W. 7-36V input covers 2S-8S without a step-down regulator.

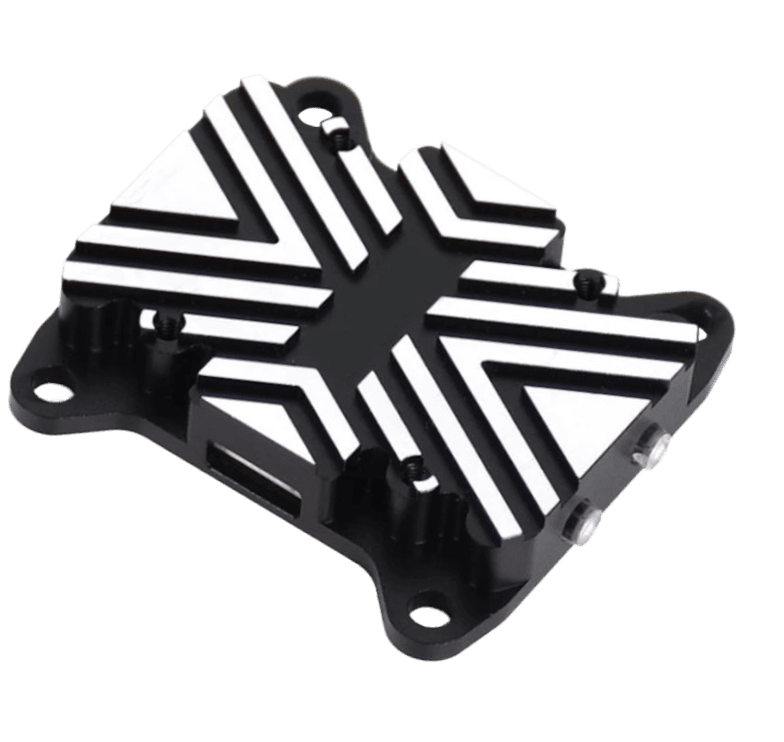

VTX Pilotix R1600 5.8G 1.6W
868MHz true diversity receiver for long-range FPV and fixed-wing UAVs. Better obstacle penetration than 2.4GHz

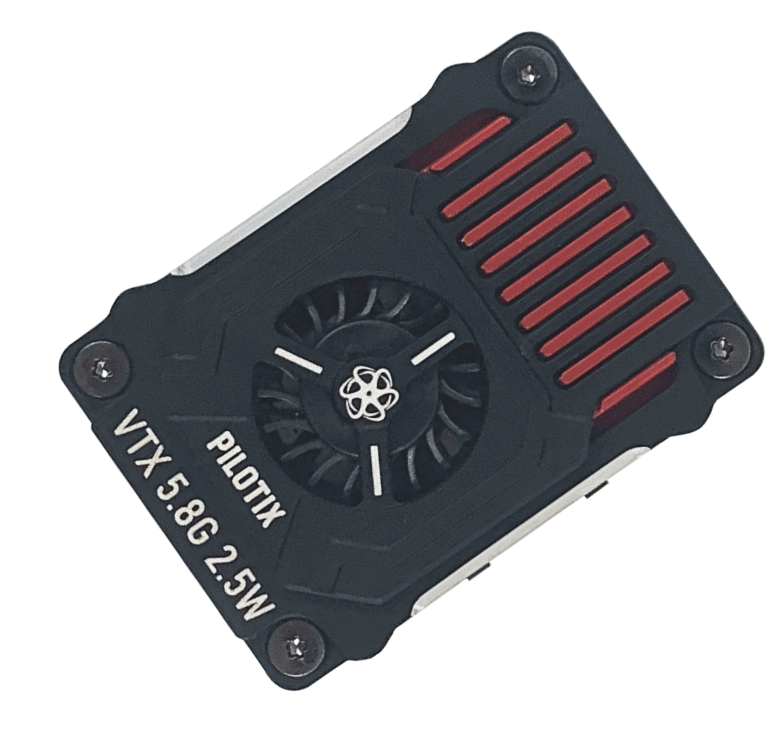

VTX Pilotix R2500 5.8G 2.5W
868MHz true diversity receiver for long-range FPV and fixed-wing UAVs. Better obstacle penetration than 2.4GHz
The link between your drone and your goggles

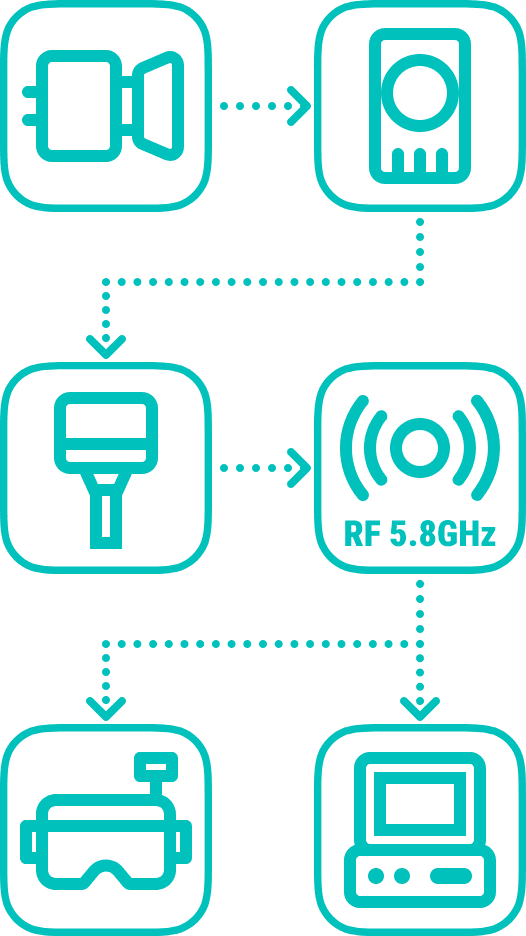

A video transmitter (VTX) takes the analog signal from the FPV camera and converts it into an RF transmission on the 5.8GHz band. Your goggles or monitor receive this signal and display the live video feed. The VTX is the single component that determines the range and quality of your video link. Output power directly affects range and video penetration. PIT mode and 25mW are used for close-range practice or multi-pilot events where high power would cause interference. 1W-3W is used for longer range or when flying in areas with RF noise. TBS SmartAudio lets you change the power level from the OSD without landing or opening a configurator. Wide-band VTXs (4.9-6.2GHz) cover additional frequency channels beyond the standard 5.8GHz band, reducing interference in congested flying environments.
Broad Range of Technical Capabilities
Broad compatibility
Platforms
Ecosystems & standards
Compatible with all analog FPV cameras (75 Ohm NTSC/PAL input). TBS SmartAudio works with Betaflight and INAV OSD. 7-36V input is compatible with any 2S-8S LiPo without a step-down regulator. MMCX connector fits all standard FPV antennas.
