Brushless motors are the primary source of thrust in any UAV, multirotor or autonomous platform. The right motor determines how much payload you can lift, how efficiently you use battery power and how precisely the platform responds to control inputs.

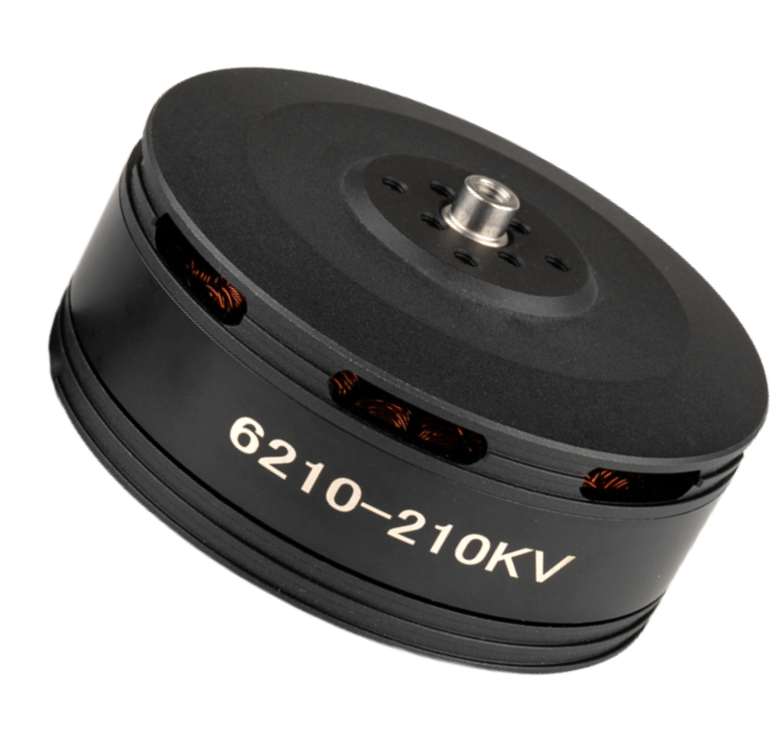

Motor Pilotix 6210 210KV
Large-frame 6210 stator motor for professional heavy-lift and industrial platforms. 68.8 mm aluminium housing.

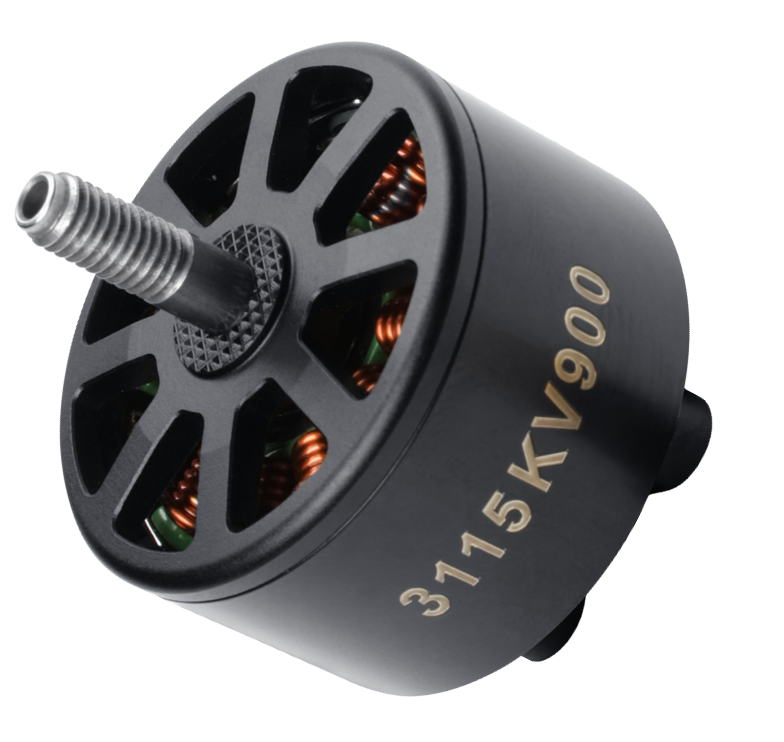

Motor Pilotix 3115 900KV
3115 stator motor for cinematic builds and long-range UAVs on 5-7" platforms. High thrust, efficiency-focused.

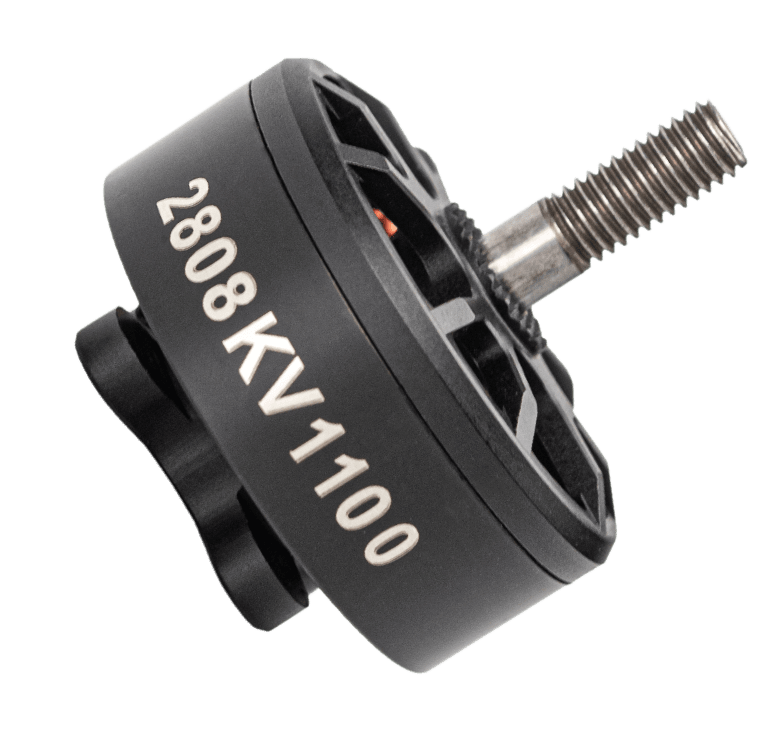

Motor Pilotix 2808 1100KV
2808 stator brushless motor for freestyle quads and cinematic builds. 1100KV at 6S, 60 g.
The muscle of every build
A brushless motor converts electrical energy into rotational force that spins the propeller. Unlike brushed motors, it has no physical contact between rotor and stator - the ESC generates a rotating magnetic field that drives the rotor cleanly and without wear. KV rating defines how many RPM the motor produces per volt of input. A 210KV motor at 8S produces slow, torque-heavy rotation for large props on industrial platforms. A 5500KV motor at 2S produces high-RPM output for micro racing builds. Stator size determines torque potential - larger diameter and taller height mean more copper, more magnetic force and higher power output. Matching stator size, KV rating and input voltage to your prop size and payload is the single most important factor in UAV efficiency and flight time.
Broad Range of Technical Capabilities
Broad compatibility
Platforms
ESC firmware & protocols
Motor shaft: 5mm (FPV / mid-range) · 6mm (heavy-lift 4214+) · Prop mounting: standard adapter or 8xM3 bolt circle on large motors. All motors compatible with Pilotix ESC range.
