PILOTIX CAMERAS
Vision. Clarity. Detection.
A camera defines what the pilot sees and what the platform detects. Pilotix cameras cover the full spectrum, from compact 1800TVL FPV cameras for racing and cinematic flying to high-resolution 640×512 thermal imaging systems.

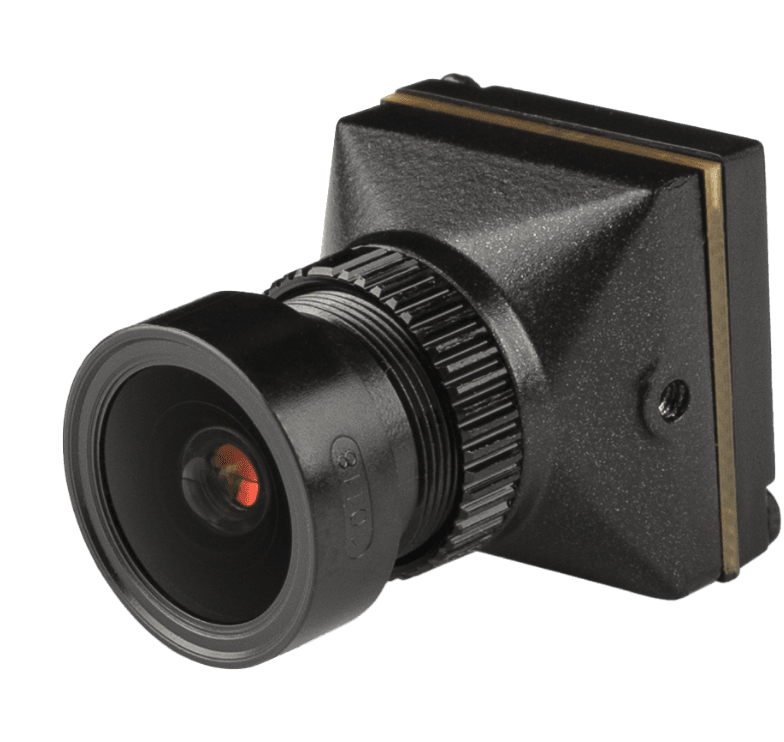

FPV Camera Pilotix P6 Pro
Compact FPV camera compatible with any build from micro quads to 10" platforms. 19×19 mm, 5-40V wide input, no voltage regulator needed.

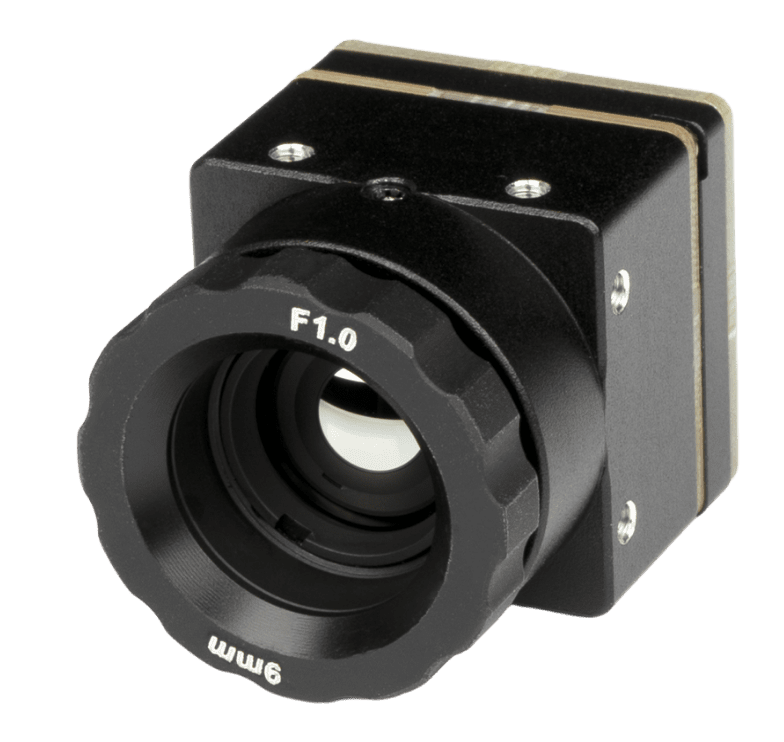

FPV Thermal Camera Pilotix T640
Flagship thermal camera for SAR, infrastructure inspection and ISR. Detects sub-degree temperature differences through darkness, smoke and foliage.

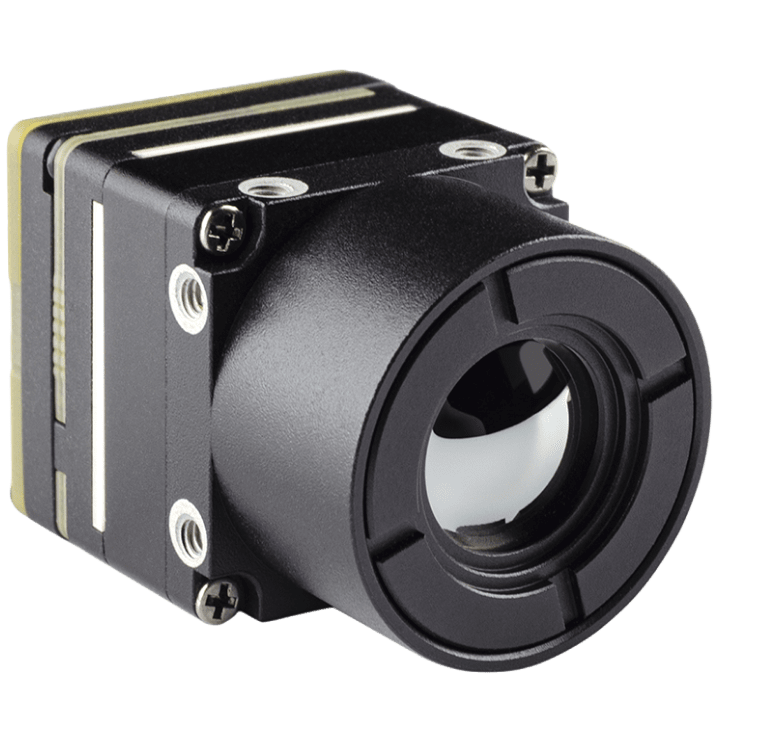

FPV Thermal Camera Pilotix T256
Entry-level thermal camera with direct flight controller integration via UART and GPIO. Lower cost and weight than the T640.
The eyes of every pilot
An FPV camera transmits live video from the drone to the pilot's goggles or monitor. Resolution, sensor size and aperture determine baseline image quality. WDR handles high-contrast lighting - sun-to-shadow transitions that would otherwise blind or wash out a standard sensor. Thermal cameras detect infrared radiation rather than visible light. They see heat signatures - human bodies, warm engines, electrical faults, fire - regardless of lighting, smoke or vegetation cover. Sensitivity (NETD) measures the smallest temperature difference the sensor can detect: a <=40mK rating means the camera resolves differences below 0.04°C. FPV cameras for flying and cinematic work. Thermal cameras for search and rescue, inspection, detection and surveillance. Both designed for direct integration on any UAV platform.
Broad Range of Technical Capabilities
Broad compatibility
Platforms
Ecosystems & standards
FPV cameras: compatible with any analog VTX and FPV goggles system. Thermal cameras: CVBS output connects to any analog VTX or video recorder. T256 UART / GPIO interfaces connect directly to ArduPilot and INAV flight controllers.
