PILOTIX FRAMES
Strength. Weight. Agility.
The frame is the foundation of every drone build. It defines motor spacing, prop clearance, camera bay and component placement - and determines how the aircraft handles vibration, impact and payload

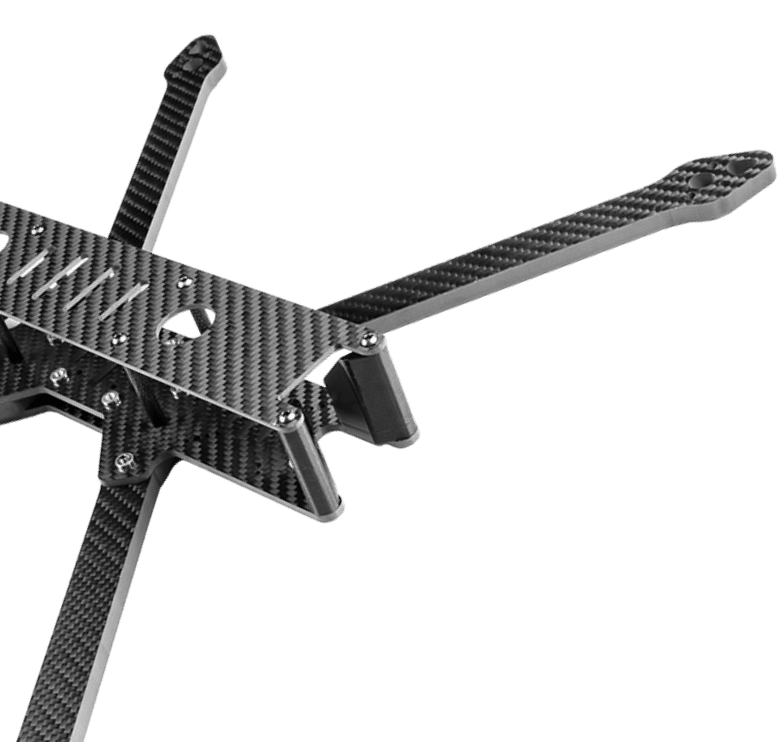

Frame Partizan Edition PT15
Large frame for cinema payload lifting and industrial sensing. Supports 15" props and 4720-size motors.

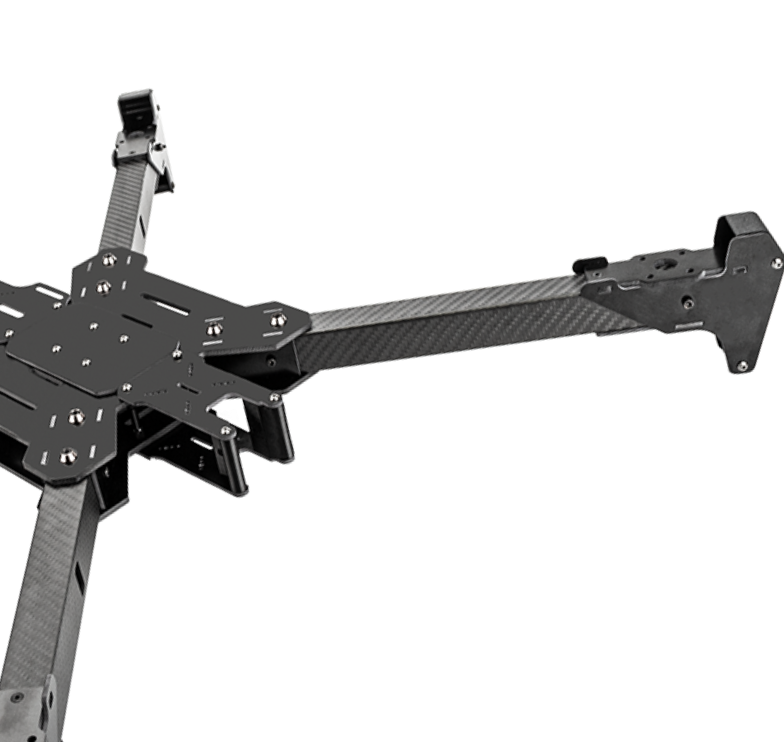

Frame Partizan Edition PT13
13" cargo frame for heavy-payload UAVs. 575 mm wheelbase, reinforced 3.5 mm bottom plate, built for sustained load.

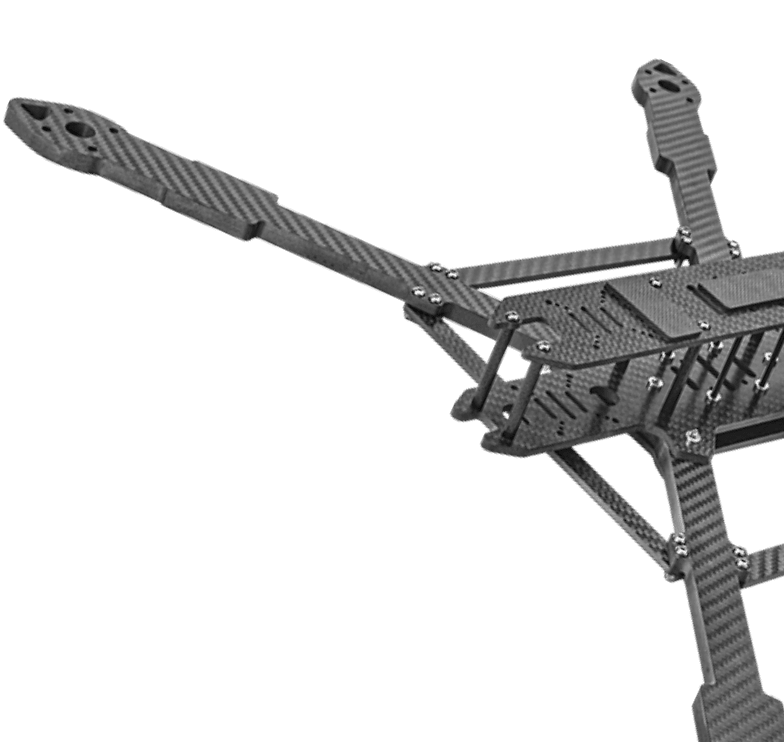

Frame Partizan Edition PT10 V3
10" long-range frame for cruising, mapping and endurance missions. T300 carbon, 427 mm wheelbase, 373 g total weight.
The skeleton of every build
A drone frame defines the physical geometry of the entire aircraft. Motor-to-motor spacing sets the maximum prop size, which directly determines how much thrust and efficiency the platform can achieve. Arm thickness and material dictate how well the frame absorbs vibration and survives hard landings. T300 carbon fiber delivers the best stiffness-to-weight ratio for UAV frames. Stiffer arms reduce vibration reaching the flight controller gyroscope, which produces cleaner IMU data, sharper stabilisation and less prop wash sensitivity. Thicker bottom plates protect the stack on impacts and carry more battery mounting options. Stack mounting pattern, motor hole spacing and camera bay size determine which components fit without modification. The 30.5 x 30.5mm standard is used across the full Pilotix frame range.
Broad Range of Technical Capabilities
Broad compatibility
Platforms
Ecosystems & standards
All frames compatible with Pilotix FC, ESC and motor range. 30.5 x 30.5mm stack fits any standard flight controller and ESC. Aluminium standoffs and full hardware set included in every package.
